HadISD online material - version 1.0.3.2014p

Please read the paper before using the material presented here.

The netCDF headers are listed below with some information as to what they contain.

Field Name	Long Name	Units

time	Time	Hours since 1-1-1973 00:00UT
input_station_id	Primary source for timestep data
temperatures		C
dewpoints		C
total_cloud_cover		oktas
low_cloud_cover		oktas
mid_cloud_cover		oktas
high_cloud_cover		oktas
cloud_base		m
windspeeds		m/s
winddirs		degree
slp	sea-level pressure	hPa
past_sigwx1	Past significant weather code
precip1_depth	Depth of Precipitation
qc_flags	Quality control flags
flagged_values	Removed values (T, D, S, TC, LC, MC, HC, WS, WD)
change_points	Month and year for change in reporting or instrument resolution
change_notes	Any notes associated with the change point

The homogeneity information for this version is available here - the list of breaks and also some of the graphical outputs. The columns of the datafiles give the Station ID, the date of the change point, and two break magnitudes (one in the case of SLP). The first is from the monthly mean value, and the second is from the monthly mean diurnal range (temperature & dewpoint temperatures) or monthly mean daily maximum (wind speed). Missing values are denoted by -99.99. Please get in touch if there are any queries.

Description	Data file	Notes
Logs
Merged temperature inhomogeneities	MergedBreaks_temperatures.dat
Merged dewpoint inhomogeneities	MergedBreaks_dewpoints.dat
Merged SLP inhomogeneities	MergedBreaks_slp.dat
Merged windspeeds inhomogeneities	MergedBreaks_windspeeds.dat

And figures from the homogeneity assessment

Type	Temperature	Dewpoints	SLP	Windspeeds
Distribution - average	PHA_temperatures_average_distribution.png	PHA_dewpoints_average_distribution.png	PHA_slp_average_distribution.png	PHA_windspeeds_average_distribution.png
Distribution - DTR	PHA_temperatures_dtr_distribution.png	PHA_dewpoints_dtr_distribution.png	-	-
Distribution - max	-	-	-	PHA_windspeeds_max_distribution.png

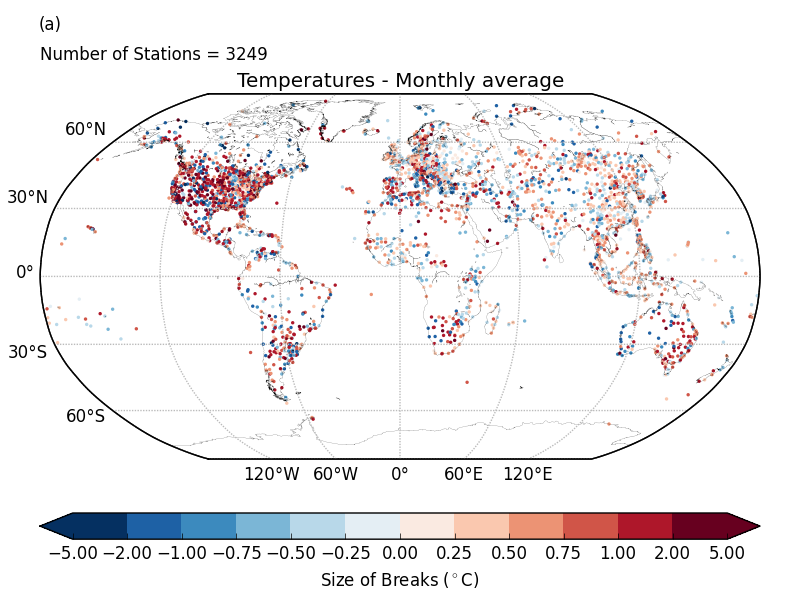

Map - average - inhomogeneity size	break_size_map_temperatures_average.png	break_size_map_dewpoints_average.png	break_size_map_slp_average.png	break_size_map_windspeeds_average.png
Map - dtr - inhomogeneity size	break_size_map_temperatures_dtr.png	break_size_map_dewpoints_dtr.png	-	-
Map - max - inhomogeneity size	-	-	-	break_size_map_windspeeds_max.png

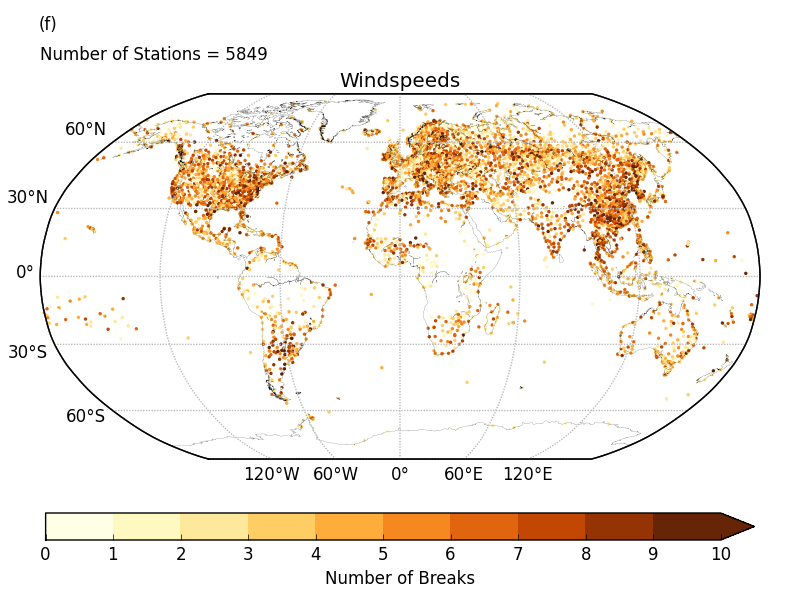

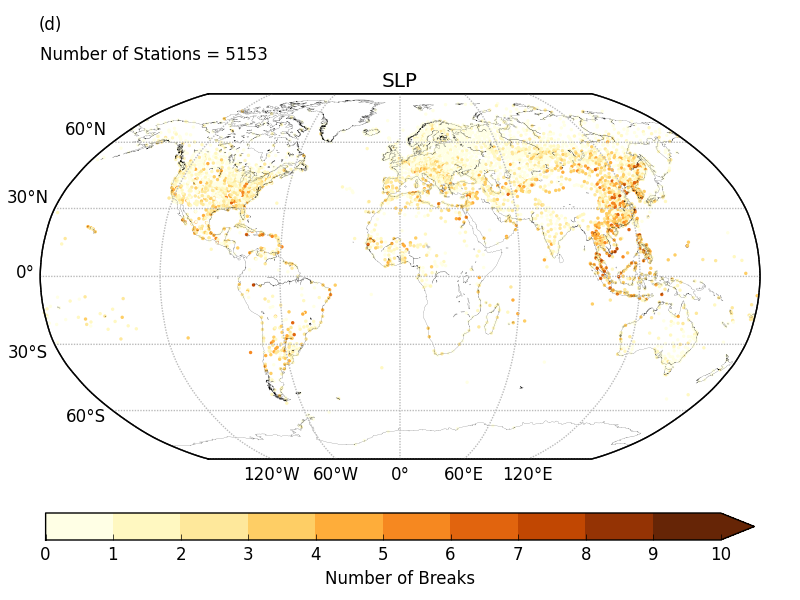

Map - inhomogeneity number	break_number_map_temperatures.png	break_number_map_dewpoints.png	break_number_map_slp.png	break_number_map_windspeeds.png
Map - no inhomogeneities	zero_breaks_map_temperatures.png	zero_breaks_map_dewpoints.png	zero_breaks_map_slp.png	zero_breaks_map_windspeeds.png

A number of files and plots are linked below which were used or generated when creating HadISD.

Description	Subset	Data file	Notes
Logs
First Internal Checks	1	InternalLog1.txt	1
	2	InternalLog2.txt	1
	3	InternalLog3.txt	1
	4	InternalLog4.txt	1
First External Checks		ExternalLog.txt
First Masking Run		MaskingLog.txt
Second Internal Checks	1	InternalLog1_2.txt	1
	2	InternalLog2_2.txt	1
	3	InternalLog3_2.txt	1
	4	InternalLog4_2.txt	1
Second External Checks		ExternalLog_2.txt
Second Masking Run		MaskingLog_2.txt

Summaries
First Internal Summary		qc_summary_internal.txt	2
First External Summary		qc_summary_external.txt	2
Second Internal Summary		qc_summary_internal2.txt	2
Second External Summary		qc_summary_external2.txt	2
Second Mask Summary		qc_summary_mask2.txt	2

Description	Station Number	Data file	Notes
Station Lists
HadISD Station List	6103	hadisd_station_info_v103.txt	3
Full Station List	6103	kept_station_info.txt	3
Composite Stations	943	composites_sorted.txt	4
Duplicated Stations	83	final_remove_dups_MAY09.txt
No neighbours to do comparison check	704	no_neighbour_checks.txt
Spurious Stations - noted in the QC		spurious_stations.txt
Expert Stations	73	expert_stations.txt
Checked Composite Stations	20	checked_composites.dat
Final Thinning - Accepted stations	4206	accept_20_1980_2000_12_24_3_3_20_5pc.txt
Final Thinning - Rejected stations	1897	reject_20_1980_2000_12_24_3_3_20_5pc.txt
User Identified erroneous data		user_identified_bad_stations.txt	9 January 2013

Failure Rate Summaries
Number of stations with a failures from a certain test in percentage bins		all_fails_summary_20130123.dat	5
As above but for non-composite stations		all_fails_summary_20130123_non_comp.dat
As above but for composite stations		all_fails_summary_20130123_comp.dat
Test 3-letter code descriptor		tests_codes.txt

Test	Variable	PostScript	PNG

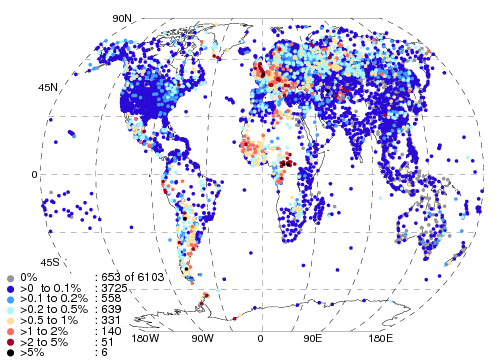

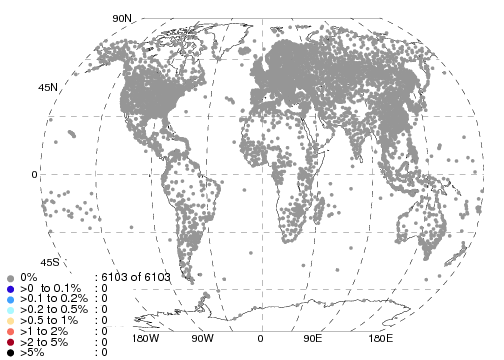

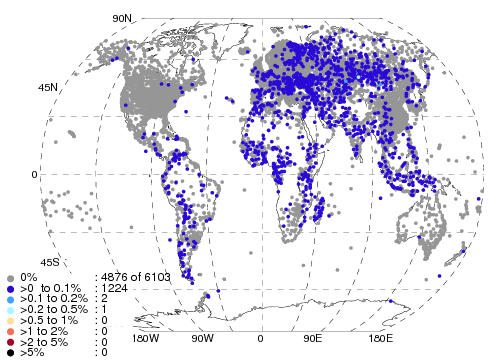

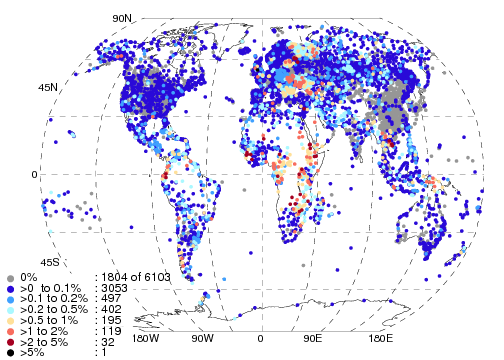

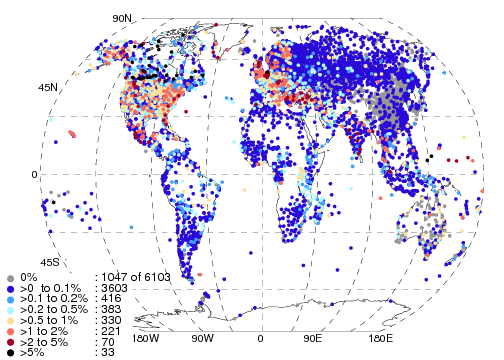

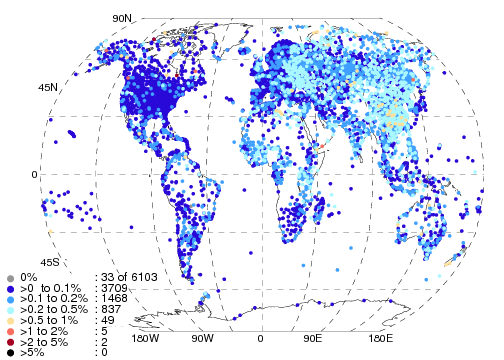

Failure Rate Plots
Duplicate months	All	eps	png
Odd Cluster	Temperatures	eps	png
Odd Cluster	Dew Points	eps	png
Odd Cluster	SLP	eps	png
Odd Cluster	Wind Speed	eps	png
Frequent Value Check	Temperature	eps	png
Frequent Values	Dew point	eps	png

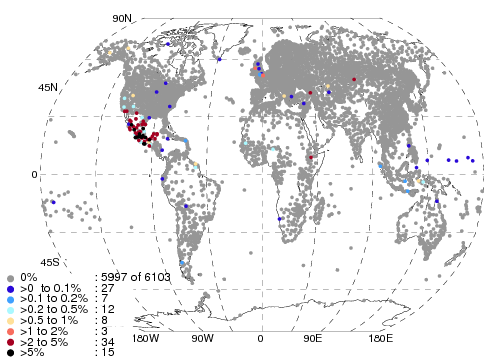

Frequent Values	SLP	eps	png
Diurnal Cycle Check	All	eps	png
Gap Check	Temperature	eps	png
Gap Check	Dew point	eps	png
Gap Check	SLP	eps	png
Record Check	Temperature	eps	png
Record Check	Dew point	eps	png
Record Check	SLP	eps	png
Record Check	Wind Speed	eps	png
Day Strings	Temperature	eps	png
Day Strings	Dew point	eps	png
Day Strings	SLP	eps	png
Day Strings	Wind Speed	eps	png

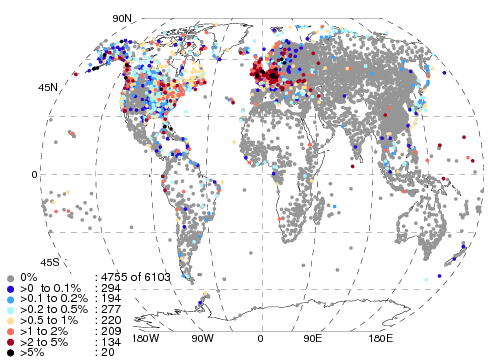

Straight Strings	Temperature	eps	png
Straight Strings	Dew point	eps	png
Straight Strings	SLP	eps	png
Straight Strings	Wind Speed	eps	png
Hour Strings	Temperature	eps	png
Hour Strings	Dew point	eps	png
Hour Strings	SLP	eps	png
Hour Strings	Wind Speed	eps	png
All temperature strings	Temperature	eps	png
All dewpoint strings	Dew point	eps	png
All SLP strings	SLP	eps	png
All wind strings	Wind Speed	eps	png
Climatological Check	Temperature	eps	png
Climatological Check	Dew point	eps	png
Climatological Check	SLP	eps	png
Spike Check	Temperature	eps	png
Spike Check	Dew point	eps	png
Spike Check	SLP	eps	png
Supersaturation	Dew point	eps	png

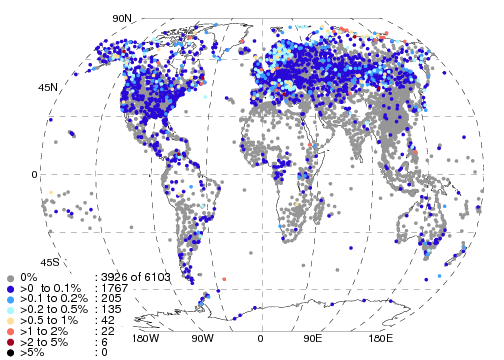

Dew point depression	Dew point	eps	png
Dew point Cut Off	Dew point	eps	png
Variance Check	Temperature	eps	png
Variance Check	Dew point	eps	png
Variance Checks	SLP	eps	png
Cloud Total	Low,Mid,High,Total	eps	png
Unobservable	High Cloud	eps	png

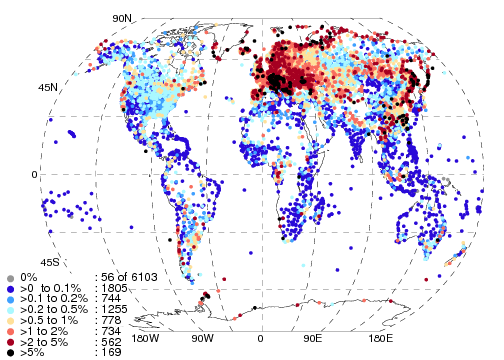

Unobservable	Low Cloud	eps	png
Unobservable	Mid Cloud	eps	png
Unobservable	Total Cloud	eps	png
Full Low cloud check	Mid & High Cloud	eps	png
Full Mid cloud check	High Cloud	eps	png
Negative cloud value	All Cloud	eps	png
Neighbour Outlier	Temperature	eps	png
Neighbour Outlier	Dew point	eps	png
Neighbour Outlier	SLP	eps	png
Month cleared	Temperature	eps	png
Month cleared	Dew point	eps	png
Month cleared	SLP	eps	png
Month Cleared	Wind Speed	eps	png
Month cleared	Wind Direction	eps	png
Month cleared	Total cloud	eps	png
Month cleared	High Cloud	eps	png
Month cleared	Mid Cloud	eps	png
Month cleared	Low Cloud	eps	png
Month cleared	Cloud Base	eps	png
All	Temperature	eps	png
All	Dew point	eps	png
All	SLP	eps	png
All	Cloud	eps	png

Notes

[1] The internal checks were run as 4 separate IDL process, and so there are 4 separate log files, each covering 1/4 of the stations.
[3] You will need the test_codes.txt to interpret these outputs
[3] Station ID, latitude, longitude and elevation used.
[4] First ID in the line is the station ID used throughout the processing. The remainder are ones which were composited into this station record.
[5] Table 6 in the paper was created from this file. And you will need the test_codes.txt file to interpret these outputs.
